T-series
The next Generation
in new design
T-SERIES
Optimised for the best overview
The T-Series is a state-of-the-art series. It features an attractive design and reliable technology. The T-Series consists of three different transmitters, which offer space for sufficient switches, buttons and joysticks. All three available transmitters provide the user with highly intuitive handling and provide the best overview for all of your application’s information through state-of-the-art colour graphic displays (GDC 3.5 and GDC 4.3). Of course, all transmitters are equipped according to the needs of our customers.

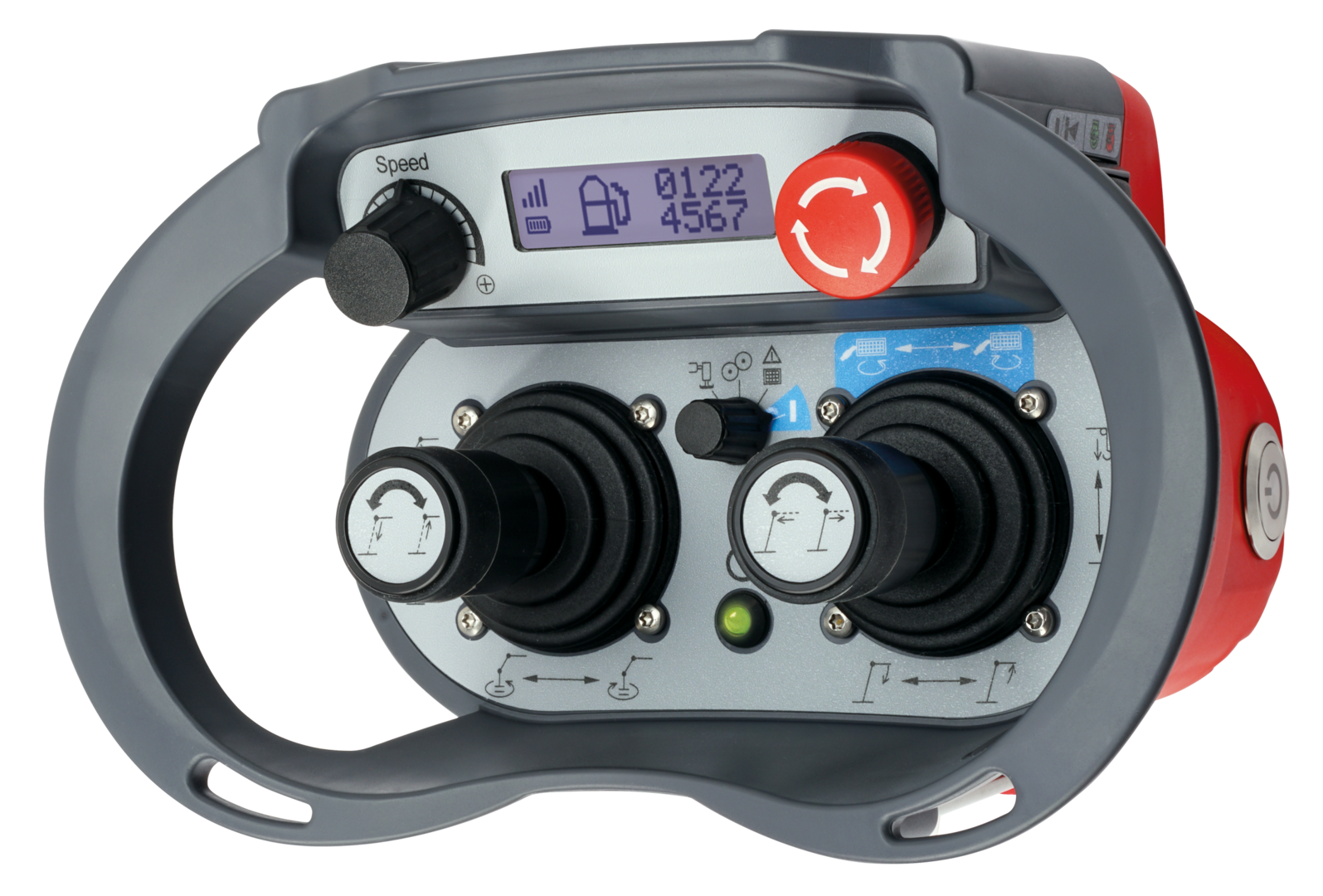

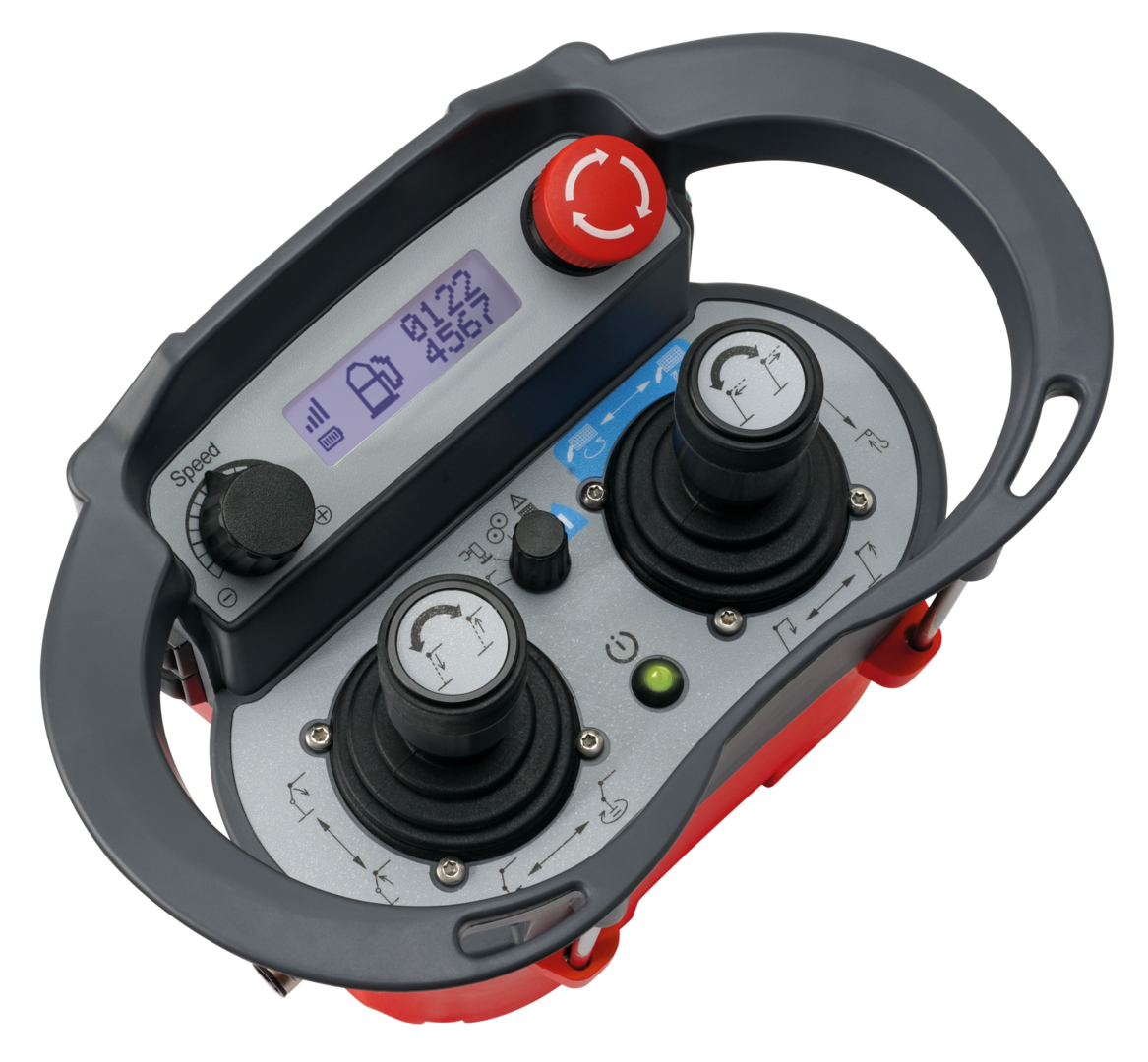

T3 Unique design
The special feature of the T3 transmitter is its versatility. You can equip it according to your individual needs and choose between key switches, toggle switches, push-buttons and joysticks with digital or analogue functions. In addition, the T3 transmitter has LED indicators and an optional graphic display for the clear transmission of information.
Technical data
| Protection class | IP 65 |
|---|---|
| Weight | approx. 1400g |
| Dimensions (B/D/H) | 220 x 140 x 150 mm |
| Battery technology | Exchangeable battery NiMH |
Download

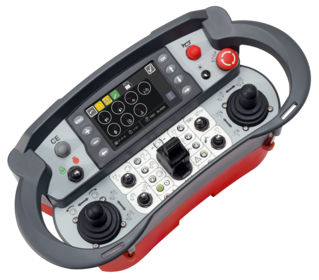

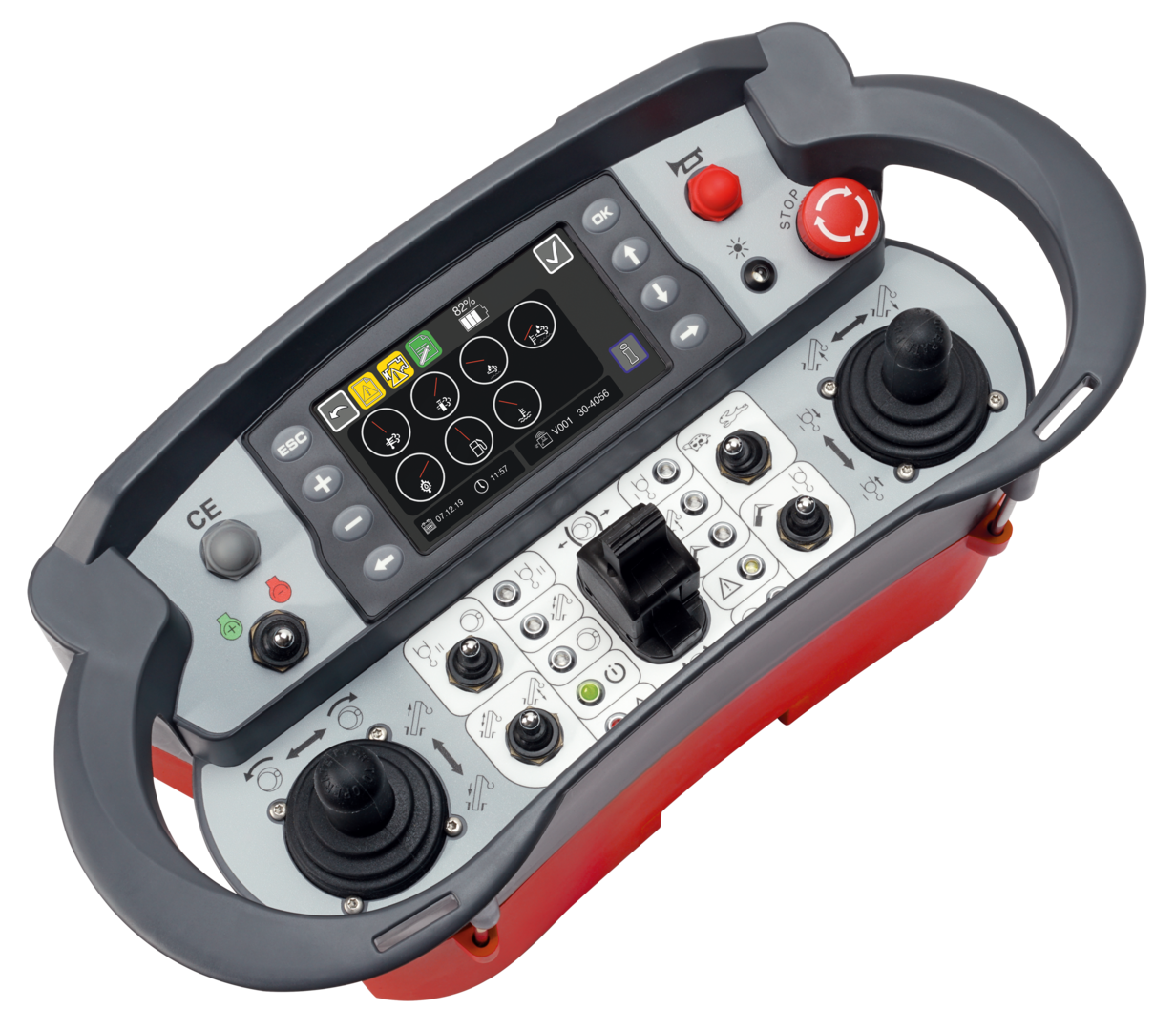

T5 High performance
Thanks to its larger housing, the T5 transmitter can be equipped with an even greater variety of controls and information sources. The freely programmable GDC 3.5 colour graphic display can be easily integrated.
Technical data
| Protection class | IP 65 |
|---|---|
| Weight | approx. 1800g |
| Dimensions (B/D/H) | 290 x 180 x 155 mm |
| Battery technology | Exchangeable battery, NiMH or Li-Ion |
Download

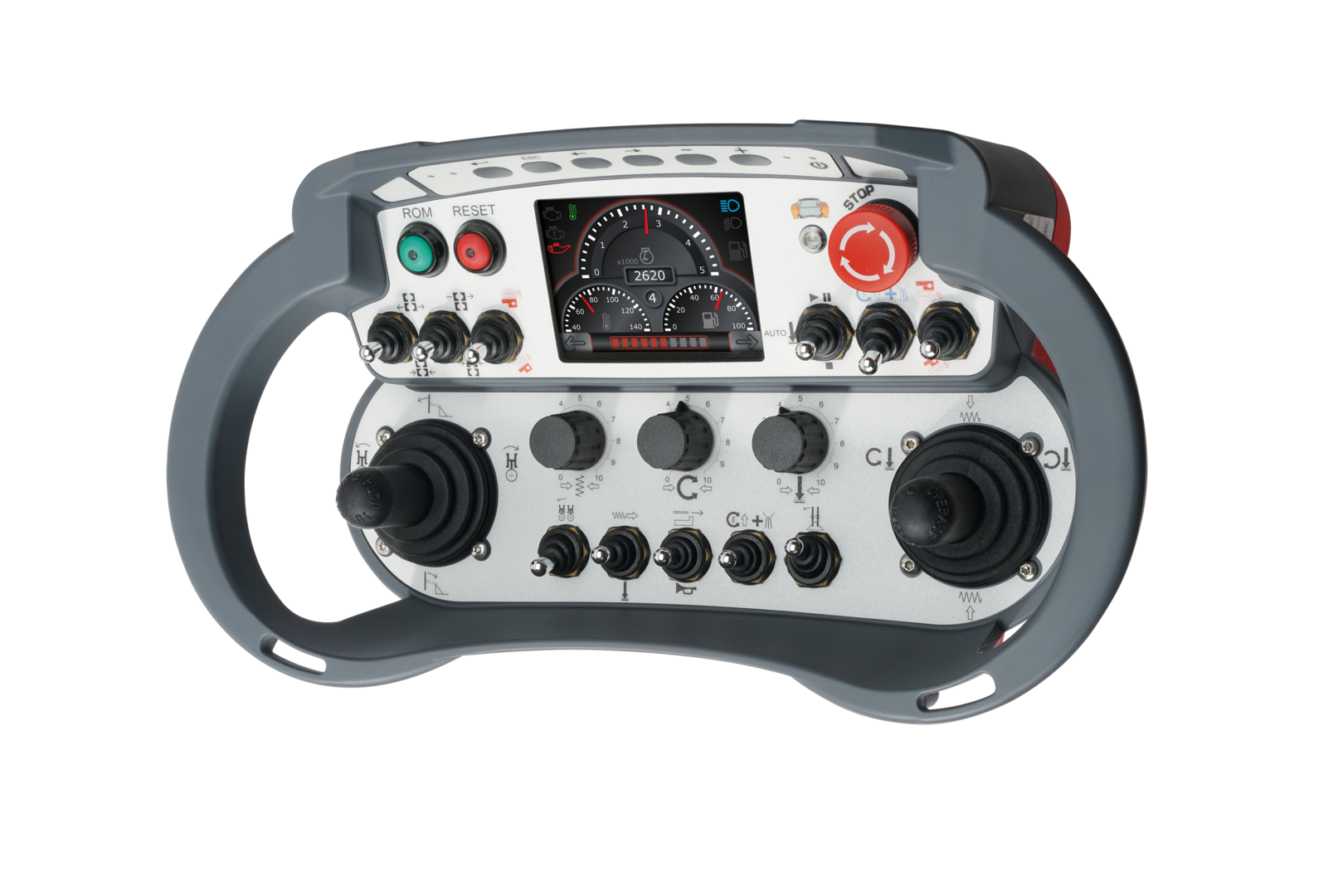

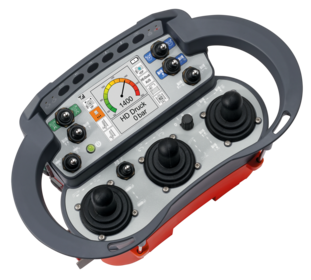

T6 TREMENDOUS FLEXIBILITY
The T6 transmitter is the perfect companion for demanding environments. Its glass fiber reinforced housing offers space for up to 4 joysticks or 8 linear joysticks. This versatile transmitter can be equipped with toggle switches, rotary switches and potentiometers. In addition, much more can be customised, and there is even enough space for the innovative displays of the GDM and GDC 3.5 series (colour graphics displays).
Technical data
| Protection class | IP 65 |
|---|---|
| Weight | approx. 1900g |
| Dimensions (B/D/H) | 325 x 18 x 165 mm |
| Battery technology | Exchangeable battery, NiMH, Li-Ion |
Download

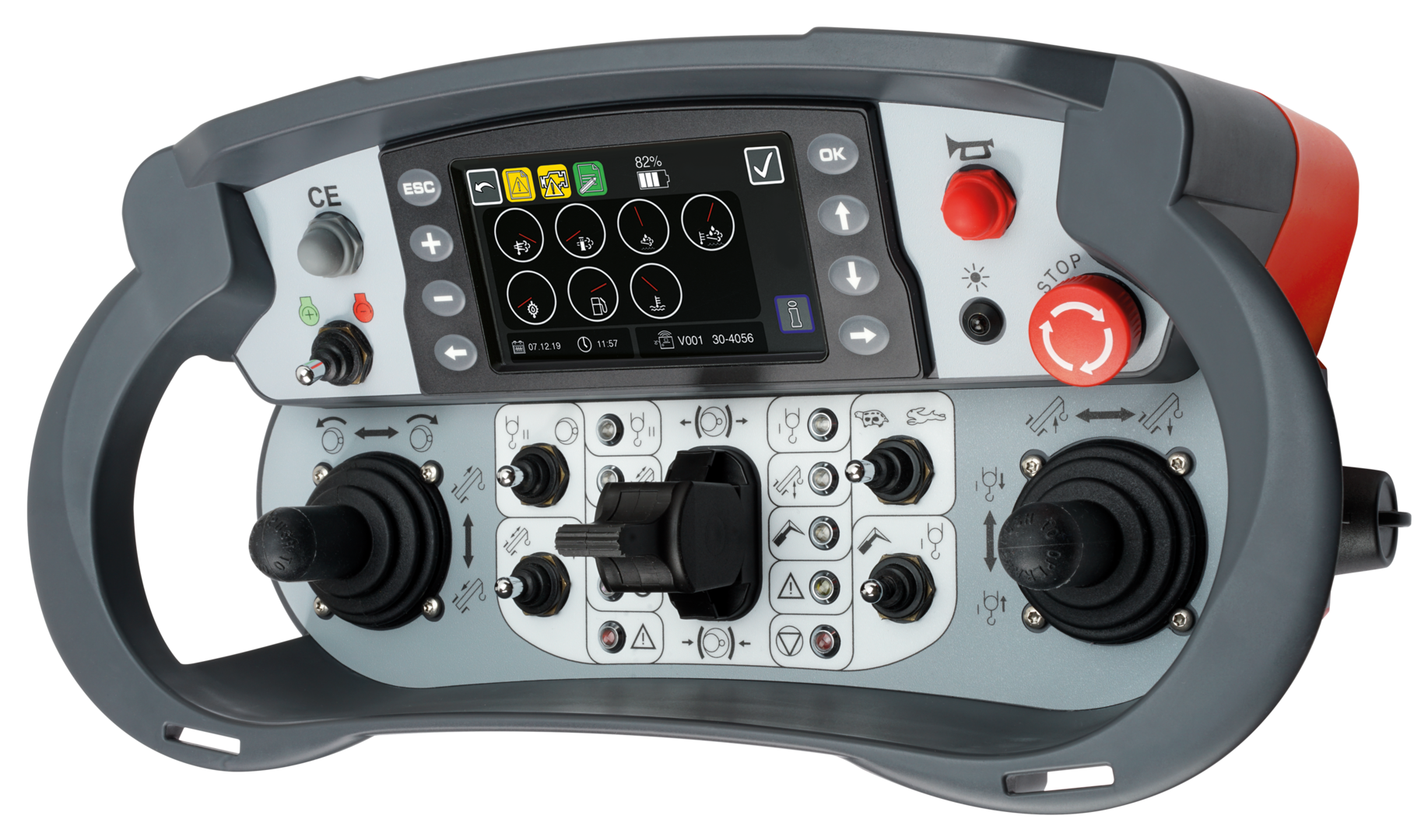

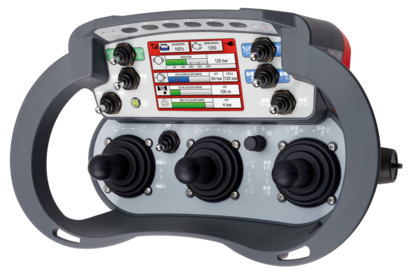

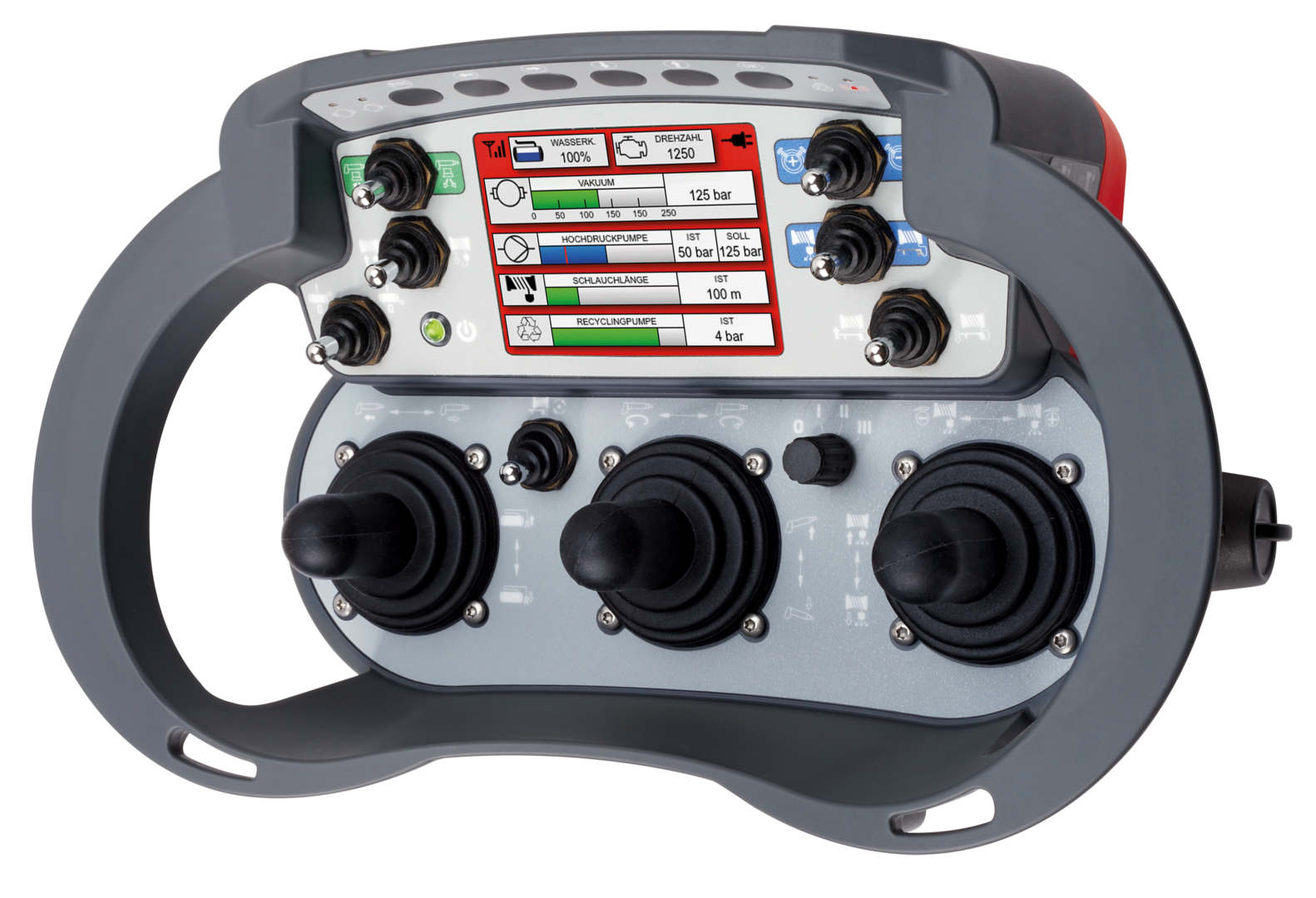

T7 Maximum number of possibilities
The T7 transmitter is the largest transmitter within the T-Series. It provides you with the maximum space for positioning your controls. At the customer's request, a 4.3" colour graphic display with optional video feedback can be installed. Thus, you not only always have control of the status, but also of your machine's working area.
Technical data
| Protection class | IP 65 |
|---|---|
| Weight | approx. 2000g |
| Dimensions (B/D/H) | 370 x 185 x 170 mm |
| Battery technology | Exchangeable battery, NiMH, Li-Ion |
