Receiver
the secure connection
to the machine
Receiver
Easy and quick to configure
Most of ARCON's receivers are fitted with a programmable motherboard. This enables the ARCON Team to respond to customer requests as fast as possible and offers maximum flexibility.
Housing variants

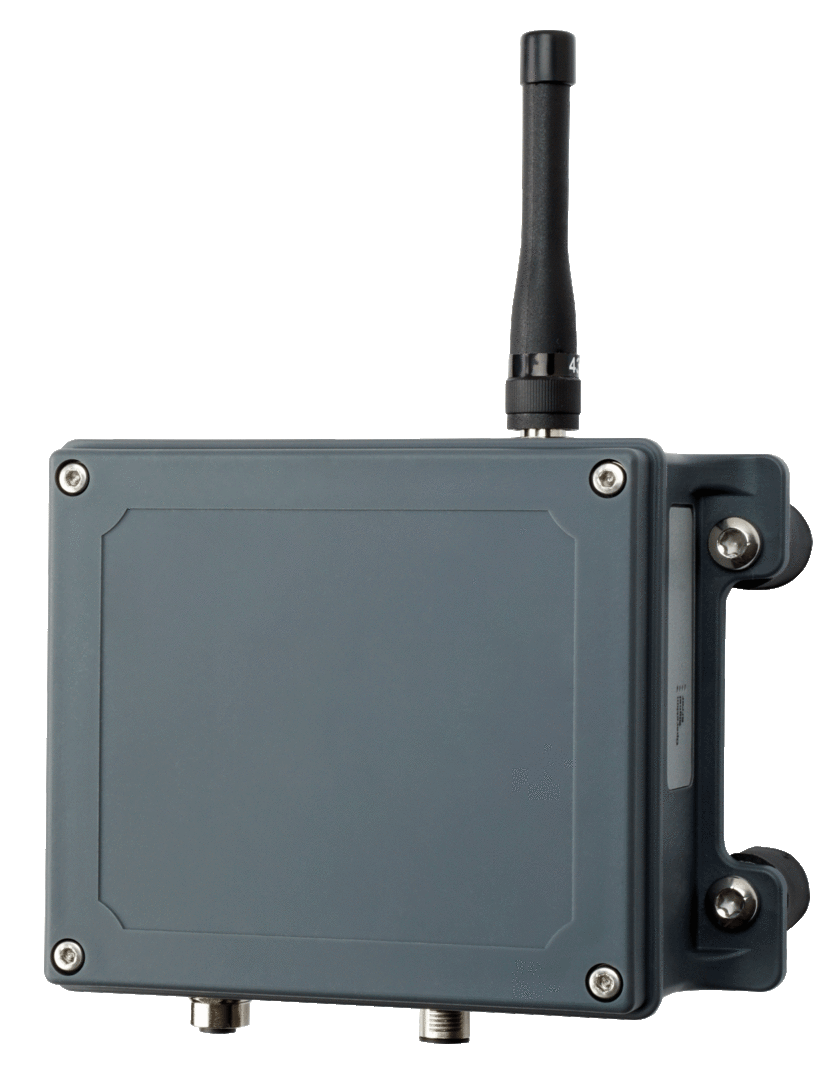

R3 Housing variant small
This receiver housing has been specially designed for mobile applications with limited space. Thanks to its compact design, it can also be mounted in places that are difficult to access. Both digital and serial interfaces can be implemented in this housing variant.
Technical data
| Protection class | IP 65 |
|---|---|
| Weight | approx. 800g |
| Dimensions (B/D/H) | 165 x 115 x 65 mm |
| Interfaces | RS 232/485, CANopen, CANopen Safety, DeviceNet, J1939, Profibus, Industrial Ethernet, Relay outputs, Transistor outputs |
Download

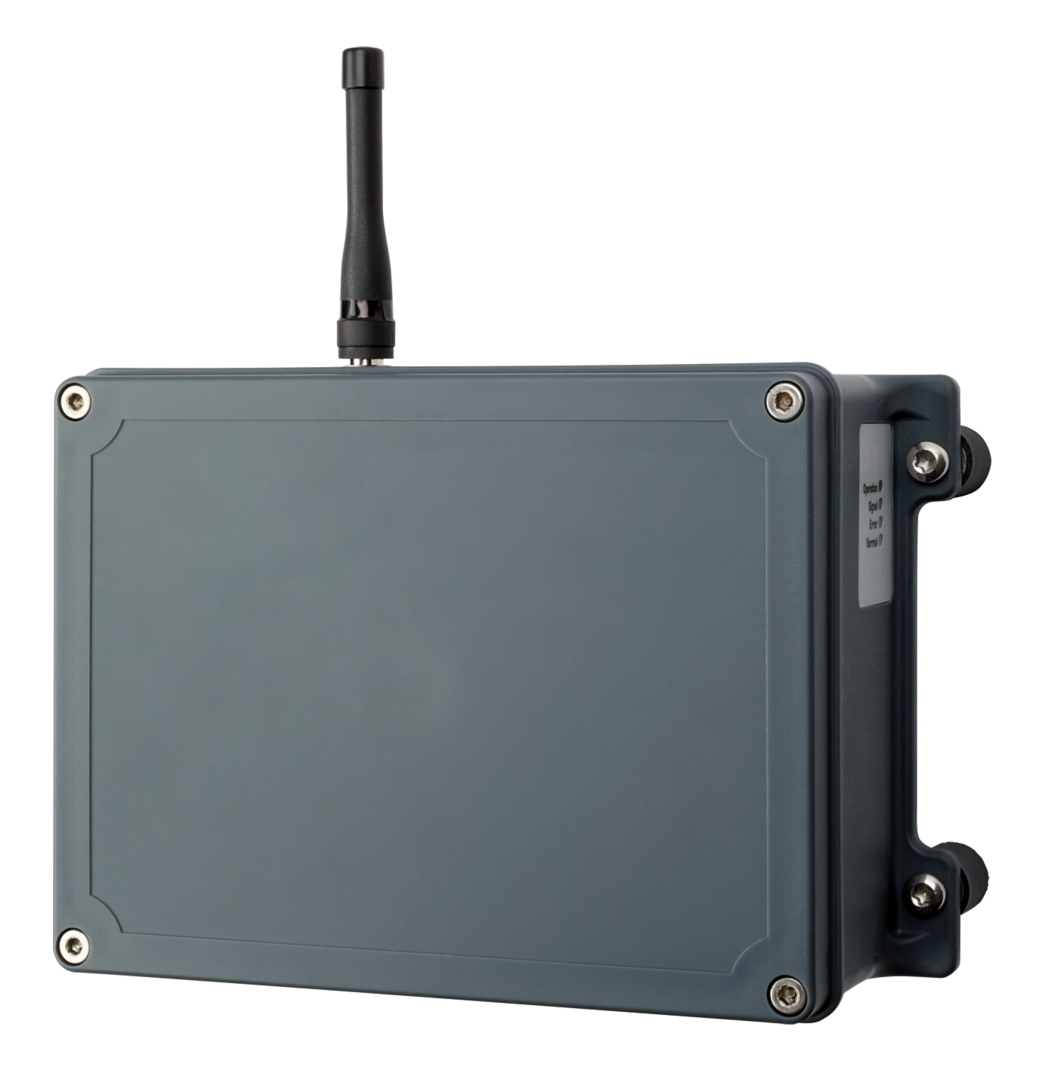

R5 Housing variant large
The R5 is the universal housing of ARCON. In this design, there are various standard digital receivers, ranging from the RCV 14+ to the RCV 26+. With the R5 housing variant, analogue outputs can be conveniently implemented for control in loading cranes or special machines. One of our standard receivers, such as the RCV BMS-2, is ideal for this type of application.
Technical data
| Protection class | IP 65 |
|---|---|
| Weight | approx. 1800g |
| Dimensions (B/D/H) | 245 x 165 x 90 mm |
| Interfaces | RS 232/485, CANopen, DeviceNet, J1939, Profibus, Industrial Ethernet relay outputs, transistor outputs, voltage outputs, current outputs |
Download
Receiver variants
RCV CBB-1 Latest receiver generation
The RCV CBB-1 represents the latest generation of compact interface receivers from ARCON. This new receiver offers a multitude of possibilities, such as two separate CAN interfaces, data logging, error diagnosis via CAN bus and an optional cable control.
Technical data
| Protection class | IP 65 |
|---|---|
| Dimensions (B/D/H) | R3 (165 x 115 x 65 mm) |
| Interfaces | CANopen, CANopen Safety, J1939, Industrial Ethernet |
| Operating voltage | 8 - 30 VDC |
Download
RCV 14+ Profibus Receiver variant
The integrated profibus interface makes the RCV 14+ Profi the perfect companion for mobile or stationary operation. There is also the option of fitting the RCV 14+ with 5 output relays, which can be used as additional controllers for your application. You can see the operating states at all times using the side diagnostics window. The RCV 14+ Profi offers you two potential-free STOP relays, which are TÜV-tested according to EN 13849-1 Cat. 3 PLd.
Technical data
| Protection class | IP 65 |
|---|---|
| Dimensions (B/D/H) | R5 (245 x 165 x 90 mm) |
| Interfaces | Profibus |
| Operating voltage | 8 - 30 VDC |
Download
In future, you will be able to download the product data sheet from here as a PDF file.
RCV14+ Industrial Ethernet Receiver variant
ARCON has a multitude of possibilities in the field of Industrial Ethernet. With the RCV 14+ Industrial Ethernet, ARCON offers a universal receiver that is adapted to your requirements by means of software. Various interfaces such as PROFINET, EtherNet IP, ModBus-TCP and EtherCAT are available. ARCON uses two RJ45 plugs for the standard version RCV 14+ Industrial Ethernet. This means you do not need an additional switch and can avoid additional expenses. Of course, you can also get your desired plug connection from ARCON.
Technical data
| Protection class | IP 65 |
|---|---|
| Dimensions (B/D/H) | R5 (245 x 165 x 90 mm) |
| Interfaces | ProfiNET, EtherNet IP, ModBus-TCP, EtherCAT |
| Operating voltage | 8 - 30 VDC |
Download
In future, you will be able to download the product data sheet from here as a PDF file.

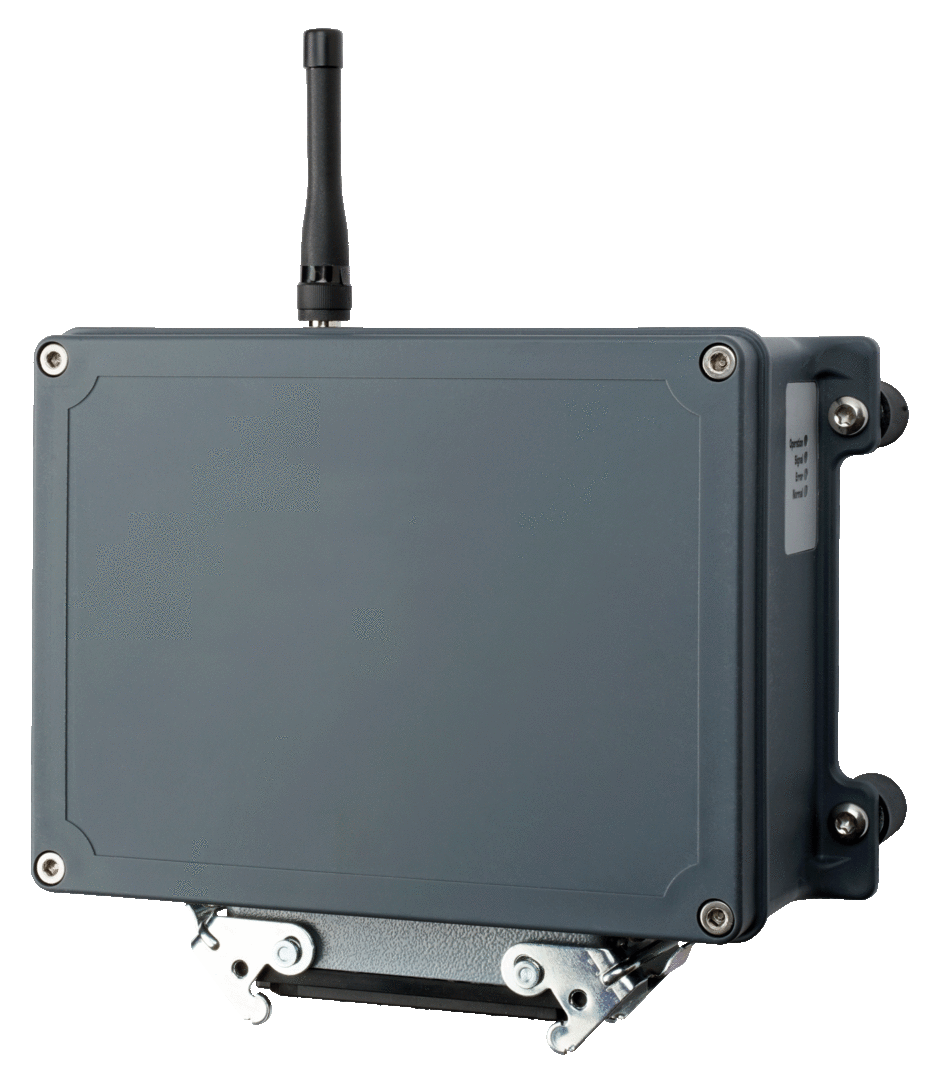

RCV 14+/26+ Receiver variant
These receiver variants are built into our proven R5 housing. With their 14 and 26 output relay, both receivers provide a high degree of flexibility. The areas of application range from construction to the automotive industry. The integrated screw terminal strip offers easy wiring options.
Technical data
| Protection class | IP 65 |
|---|---|
| Dimensions (B/D/H) | R5 (245 x 165 x 90 mm) |
| Output signals | 14 or 26 potential-free make contacts (8 A / 250 V) |
| Operating voltage | 8 - 30 VDC, 48 VAC, 120 VAC, 240 VAC |
Download
In future, you will be able to download the product data sheet from here as a PDF file.
RCV BMS-2 Receiver variant
The RCV BMS-2 receiver from ARCON is particularly used in mobile work machines. With the option of controlling current and voltage-controlled hydraulic valves, it is the ideal companion for loading cranes, forestry cable winches and mobile screening units. You can see the operating states at all times using the side diagnostics window. The standard quick-set function from ARCON is an optional feature for individual speed adjustment.
Technical data
| Protection class | IP 65 |
|---|---|
| Dimensions (B/D/H) | R5 (245 x 165 x 90 mm) |
| Output signals | 8 analogue outputs / 12 digital outputs (8 A / 36 VDC) |
| Operating voltage | 8 - 30 VDC |
Download
In future, you will be able to download the product data sheet from here as a PDF file.
