NEW
TGE-210
VERSATILE IN USE
TESTED ACCORDING TO
- EN ISO 13849
- EN 60204-32
- EN 62061
- EN 62745

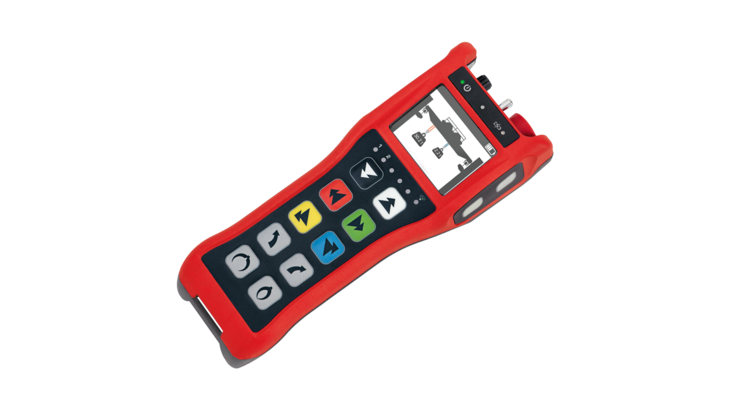

©The TGE-210 pushbutton device is versatile and suitable for a wide range of applications. The 14 pushbuttons – including 4 single-step and 10 two-step pushbuttons – can be effortlessly adapted to suit different requirements thanks to customised labelling. The TGE-210 also offers the options of a 2.8“ colour graphic display, 6 RGB LEDs, a toggle switch or a rotary switch.
Technical data
| PROTECTION CLASS | IP 65 |
| TEMPERATURE RANGE | -20 to +60 °C |
| WEIGHT | approx. 500 g |
| DIMENSIONS | 100 x 50 x 250 mm (W/D/H) |
| FREQUENCY RANGE | 863-930 MHz; 2.4 GHz |
| BATTERY TECHNOLOGY | integrated, Li-Ion |
| OPERATING TIME | up to 10 hours |
| OPERATING RANGE | > 100 m |
Download
Options
- STOP Cat. 3 PLe / SIL3
- 10 two-step pushbuttons up to Cat. 1 PLc / SIL1
- 4 single-step pushbuttons up to Cat. 1 PLc / SIL1
- 6 RGB LEDs for feedback or as status indicators
- 2.8“ colour graphic display, freely programmable via Qt
- Brightness sensor
- Toggle switch (momentary or latching) up to Cat. 2 PLd / SIL2
- Rotary switch (multi-step)
- Potentiometer
- Non-contact safety switch (PSEN)
- Vibration alarm
- Cable control with integrated charging function
- Multi-operation
- Layer switching
- User-defined switch-off time
- Customised labelling
- Shoulder belt
- Wall mount
- FIDLOCK mount (+belt clip)
- Integrated magnetic holder
Wide range of operating options for demanding applications
The TGE-210 offers maximum flexibility and functionality in a robust housing. With a total of 14 individually labelled pushbuttons - 10 of which are two-stage and 4 are single-stage - the device can be precisely adapted to a wide range of control requirements. The ergonomic button layout ensures intuitive operation, even for complex tasks. Whether as a central control unit or as a mobile operating unit - this push-button device is ideally suited for a wide range of industrial applications.
Extended visualisation and feedback
The TGE-210 is optionally equipped with a high-resolution 2.8" colour graphic display that can be freely programmed (using Qt). This allows status displays, machine statuses or user instructions to be clearly visualised. The operating concept is complemented by up to six RGB LEDs, a brightness sensor and optional operating elements such as toggle switches, rotary switches or potentiometers. A vibration alarm can also be integrated - ideal for use in noisy environments or for haptic feedback.
Robust technology for mobile use
With protection class IP65, an integrated Li-ion battery and a radio range of over 100 metres, the TGE-210 is designed for use in demanding conditions. Thanks to multi-mode operation and optional cable control with charging function, the device remains reliably ready for use even during long periods of use. The practical magnetic holder, FIDLOCK mount or a shoulder strap enable flexible carrying and fastening options. This means that the TGE-210 is not only technically powerful, but also optimally equipped for ergonomic and mobile use.
