TGD-8

EVERYTHING UNDER CONTROL

TESTED ACCORDING TO

  • EN ISO 13849
  • EN 60204-32
  • EN 62061
  • EN 62745

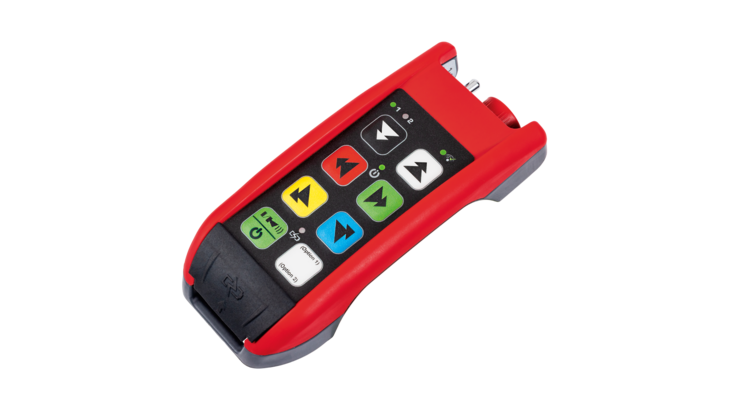

TGD-8 keypad with 8 two-stage push buttons, STOP switch, and toggle switch, optionally with RGB-LED status indicator.©

Thanks to its modern, ergonomic design, the TGD-8 pushbutton device is unique in its class. The new operating concept enables flexibility in every area of application. The TGD-8 features a STOP switch, a toggle switch and 8 pushbuttons, each of which has a two-step design and can be adapted to suit any application thanks to customised labelling. As an option, the TGD-8 provides up to 6 RGB LEDs to show the status of the machine.

Technical data

PROTECTION CLASS IP 65
TEMPERATURE RANGE -20 to +60 °C
WEIGHT approx. 300 g
DIMENSIONS 80 x 45 x 175 mm (W/D/H)
FREQUENCY RANGE 863-930 MHz; 2.4 GHz
BATTERY TECHNOLOGY integrated, Li-Ion
OPERATING TIME up to 80 hours
OPERATING RANGE > 100 m

Download

icon of two interconnected cog wheels
Mechanical engineering
icon of a large mobile crane
Construction machinery
icon of a tractor
Agricultural machinery and forestry
icon of a huge conveyor belt with two large boxes on it
Conveyor technology and intralogistics
icon of a port, showing a container ship and a huge crane loading a container onto it
Harbour and marine technology

Options

  • STOP Cat. 3 PLe / SIL3
  • 8 single-step pushbuttons up to Cat. 1 PLc / SIL1
  • 6 RGB LEDs for feedback or as status indicators
  • Toggle switch (momentary or latching) up to Cat. 2 Pld / SIL2
  • Multi-operation
  • Layer switching
  • User-defined switch-off time
  • Customised labelling
  • Top housing available in red, blue or grey
  • Shoulder belt
  • Wall mount

Ergonomic design for precise control

The TGD-8 combines modern design with maximum functionality in a compact push-button device. With eight two-stage pushbuttons, a STOP switch and a toggle switch, the device offers a sophisticated operating structure for demanding industrial applications. The ergonomic layout enables safe and intuitive control - even with frequent use or under difficult conditions. The buttons can be individually labelled to optimise operation for the respective application.

High flexibility thanks to smart functions

The TGD-8 impresses with its versatility and sophisticated equipment options. Thanks to level switching, several function groups can be controlled with one device - saving space and simplifying complex control scenarios. Radio transmission via 863-930 MHz or 2.4 GHz enables ranges of over 100 metres, while the integrated Li-ion battery allows up to 80 hours of operation.

Reliable in any environment

With its IP65 protection class, a robust housing and a wide temperature range of -20 to +60 °C, the TGD-8 pushbutton device is ideally equipped for use in harsh industrial environments. Whether in conveyor technology, machine and plant construction or in mobile applications such as forestry or construction machinery - the device offers reliable control and a high level of user safety. Accessories such as shoulder strap and wall mount provide additional convenience. The push-button device can also be customised visually - the upper part of the housing is available in red, blue or grey.
