NEW
TGE-112S
CUSTOMISED
TESTED ACCORDING TO
- EN ISO 13849
- EN 60204-32
- EN 62061
- EN 62745

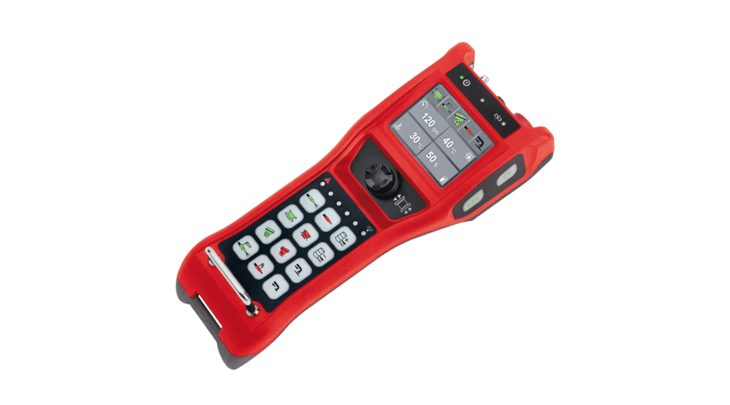

©The TGE-112S hand-held transmitter is the versatile all-rounder in the pushbutton segment. Thanks to its customised concept, it can be quickly and easily adapted to specific requirements. In the basic version, the transmitter has 16 single-step pushbuttons, 12 of which optionally come with lighting. The signals from the 12 pushbuttons can be transmitted in accordance with Cat. 3 PLd. A special feature of the TGE-112S is the optional thumb joysticks which, depending on the application (1 or 2 joysticks), can be placed flexibly in the area provided. The freely programmable 2.8“ colour graphic display can be programmed via Qt by either the customer or ARCON. An optional cable control increases the operational readiness of the hand-held transmitter. If required, a non-contact safety switch (PSEN) can be integrated into the bottom housing, while the counterpart can be integrated into the corresponding wall mount.
Technical data
| PROTECTION CLASS | IP 65 |
| TEMPERATURE RANGE | -20 to +60 °C |
| WEIGHT | approx. 500 g |
| DIMENSIONS | 100 x 50 x 250 mm (W/D/H) |
| FREQUENCY RANGE | 863-930 MHz; 2.4 GHz |
| BATTERY TECHNOLOGY | integrated, Li-Ion |
| OPERATING TIME | up to 10 hours |
| OPERATING RANGE | > 100 m |
Download
Options
- STOP Cat. 3 PLe / SIL3
- Up to 2 thumb joysticks up to Cat. 3 PLe / SIL3
- 12 single-step pushbuttons up to Cat. 3 PLe / SIL3
- 4 single-step pushbuttons up to Cat. 1 PLc / SIL1
- Button illumination
- 6 RGB LEDs for feedback or as status indicators
- 2.8“ colour graphic display, freely programmable via Qt
- Brightness sensor
- Toggle switch (momentary or latching) up to Cat. 2 PLd / SIL2
- Rotary switch (multi-step)
- Potentiometer
- Non-contact safety switch (PSEN)
- Vibration alarm
- Cable control with integrated charging function
- Multi-operation
- Layer switching
- User-defined switch-off time
- Customised labelling
- Shoulder belt
- Wall mount
- FIDLOCK mount (+belt clip)
- Integrated magnetic holder
Compact, powerful and customisable
The TGE-112S hand-held transmitter combines robust technology with exceptional flexibility and is aimed at users who require a versatile control device for demanding tasks. The 16 clearly arranged, single-stage pushbuttons include 12 safety-certified buttons up to Cat. 3 PLe, which can be optionally illuminated. Thanks to the individual labelling and ergonomic design, the transmitter can be operated intuitively and optimally adapted to the respective application.
More functions for more application scope
Whether thumb joysticks, a high-resolution 2.8" colour graphic display or additional operating elements such as rotary switches, toggle switches or potentiometers - the TGE-112S can be modularly expanded and specifically adapted to the respective requirements. The display is conveniently programmed via Qt and can be taken over by both the customer and ARCON. RGB LEDs and a vibration alarm provide additional feedback and safety during operation. A brightness sensor automatically adjusts the display lighting to the ambient brightness.
Safe and flexible in use
With protection class IP65, a range of over 100 metres and up to 10 hours of operating time, the TGE-112S is ideally equipped for mobile use in a wide range of conditions. The optional cable control with integrated charging function allows uninterrupted use. The system is complemented by useful accessories such as shoulder strap, wall mount, magnetic holder or FIDLOCK belt clip.
