NEW

TGD-F15

LIGHTWEIGHT ALL-ROUNDER

TESTED ACCORDING TO

  • EN ISO 13849
  • EN 60204-32
  • EN 62061
  • EN 62745

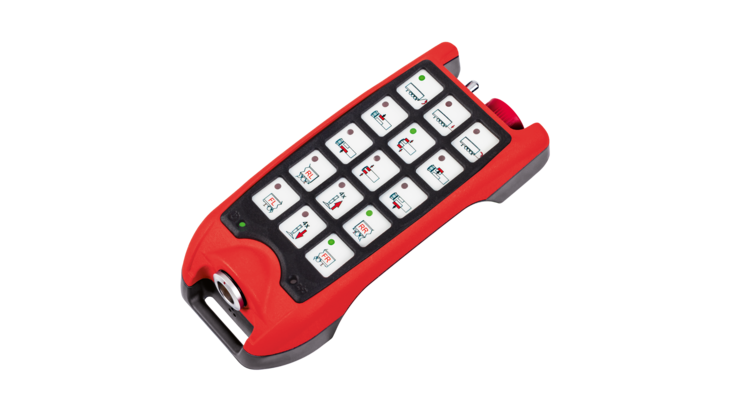

Remote control TGD-F15 with 15 single-stage push buttons, RGB status indicator, button lighting, and optional cable control.©

The TGD-F15 is ARCON‘s most compact pushbutton transmitter, which comes with radio/cable control as standard. The three-row arrangement makes it easy to operate all 15 single-step pushbuttons, even when wearing gloves. Each button has a status indicator (RGB) and additional backlighting. The optional cable control considerably increases the usability of the hand-held transmitter, as all the data is transmitted via control cable and the battery is charged at the same time. Stickers can be used to customise the labelling on the TGD-F15 to suit the individual requirements.

Technical data

PROTECTION CLASS IP 65
TEMPERATURE RANGE -20 to +60 °C
WEIGHT approx. 300 g
DIMENSIONS 80 x 45 x 175 mm (W/D/H)
FREQUENCY RANGE 863-930 MHz; 2.4 GHz
BATTERY TECHNOLOGY integrated, Li-Ion
OPERATING TIME up to 80 hours
OPERATING RANGE > 100 m

Download

icon of two interconnected cog wheels
Mechanical engineering
icon of a large mobile crane
Construction machinery
icon of a tractor
Agricultural machinery and forestry
icon of a huge conveyor belt with two large boxes on it
Conveyor technology and intralogistics
icon of a port, showing a container ship and a huge crane loading a container onto it
Harbour and marine technology

Options

  • STOP Cat. 3 PLe / SIL3
  • 15 single-step pushbuttons up to Cat. 1 PLc / SIL1
  • Button illumination
  • Status indicator pushbuttons (RGB)
  • Toggle switch (momentary or latching) up to Cat. 2 Pld / SIL2
  • Cable control with integrated charging function
  • Multi-operation
  • User-defined switch-off time
  • Customised labelling
  • Shoulder belt
  • Wall mount

Compact design, powerful performance

The TGD-F15 impresses as a particularly compact yet powerful push-button control. With its three-row button arrangement, it enables intuitive and safe operation of 15 single-stage pushbuttons - even when wearing gloves. Thanks to its low weight and ergonomic design, it is ideal for mobile use in demanding conditions.

Flexible operation by radio and cable

Particularly convenient: the TGD-F15 can be operated either by radio or via an optional cable connection. In cable mode, all control data is transmitted reliably - while the integrated lithium-ion battery is charged at the same time. This duality ensures high availability and allows uninterrupted operation, even during long periods of use. The radio transmission operates in the 863-930 MHz or 2.4 GHz range and offers a range of over 100 metres.

Versatile use in demanding industries

Whether in mechanical engineering, conveyor technology or mobile applications such as construction or agricultural machinery - the TGD-F15 is equipped for a wide range of applications. The IP65 protection class and a wide temperature range of -20 to +60 °C guarantee reliable operation even under harsh environmental conditions. Practical accessories such as  shoulder strap or wall mount facilitate integration into existing work processes.
